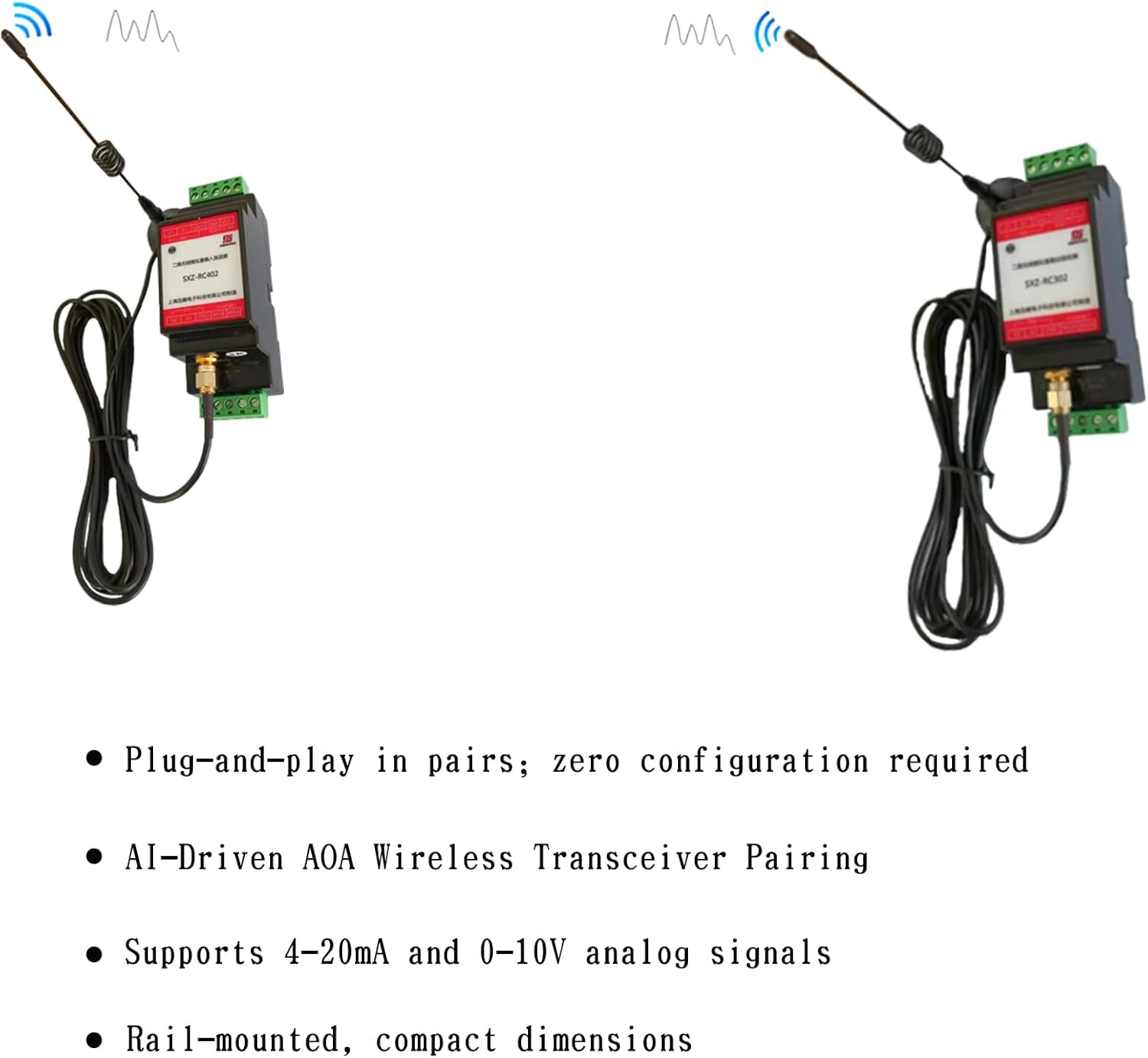

​2-Channel 4-20mA or 0-10V Analog Transmitter and Receiver Pair Wireless Analog Signal Transceiver Device

The SXZ-RC-WA is a pair of point-to-point wireless analog signal transmission devices.This set consists of the SXZ-RC402 analog transmitter and the SXZ-RC302 analog receiver.The SXZ-RC402 transmitter provides 2-channel 4-20mA or 0-10V analog signal input(Default factory configuration: 4-20mA. If 0-10V is required, buyers must specify this in the order notes during purchase​).The SXZ-RC302 receiver provides remote replication and restoration of 2-channel 4-20mA or 0-10V analog signals. To put it simply, the SXZ-RC402 transmiter receiver products will monitor a 4-20mA or 0-10V analog sinal on the input board and wirelessly tell theSXZ-RC302 to setit's 4-20mA or 0-10V analog signal output to the same state. The SXZ-RC-WA operates in the 433MHz ISM band, with a maximum line-of-sight (LOS) wireless transmission distance of 2Miles, providing long-range transmission and stable communication.It is user-friendly for purchasers, sold as a pair, and requires no PC software configuration or wiring.Non-professional users can easily handle the wiring and operation. The SXZ-RC-WA is commonly used for: Wireless 4-20mA or 0-10v transmissior. Wireless PLc 4-20mA or 0-10v Retrofit. Replacing an existing "broken" wire too expensive to replace conventionally. Remote sensor monitoring.

• Single 4-20mA or 0-10v signal at one location wirelessly replicated at remote location.
• ​Plug and Play product for most applications
• ​Long Range Wireless communications up to 2 Miles at 433MHz
• Reverse polarity protection at power supply input
• Easy installation: Supports standard 35mm DIN rail mounting, or can be directly fixed to the cabinet with 4 screws
