Marine Instrument Panel with 5 Gauges - Tachometer Fuel Level Water Temperature Oil Pressure Voltmeter Durable Aluminum Alloy Panel IP67 Waterproof Easy Installation for Engine Yacht Fishing Boat Ship

Specification: Item Type: Dash Instrument Panel Material: Aluminum alloy+ABS+stainless steel+tempered glass Function Display: 85mm tachometer can display: engine speed 0-4000RPM, 99999.9H timing 52mm water temperature gauge shows water temperature: 100-250℉ (40-120 ℃); (Input signal: 301-22ohms) The 52mm oil level gauge shows the oil volume of the oil tank: F-1/2-E; (Input signal: 0-190ohms) The 52mm oil pressure gauge can display the oil pressure of the oil tank: 0-10Bar (0-145psi); (Input signal: 10-184ohms) 52mm voltmeter can display battery voltage: 8-16V; Operation Mode: LCD display, stepper motor Working Voltage: DC12V circuit system; (Except for the voltmeter, the other four instruments can work in the DC24V circuit system) Working Current: ≤ 100 MA Working Temperature: - 30 ℃ -+75 ℃ Storage Temperature: - 40 ℃ -+85 ℃ Backlight Color: Red Protection Grade: IP67, can work at 1m underwater, excellent antifog function; Application: This instrument panel can be installed in the central control position of your RV yacht or engineering vehicle. It only needs 300 x 190mm / 11.8 x 7.5in unit area to combine the five instruments together, which greatly saves space and decorate your central control. The five instruments are equipped with red back light and red LED light needles, which can clearly view all parameters even at night. At the same time, the multifunction panel also includes water temperature alarm, low oil pressure alarm and low voltage alarm, The charging indicator, lighting switch, BUZZER switch, ENG STOP switch and other functions can be used to know the status of the engine at any time through the data on the panel Application: The central control multifunction refitting panel can be used in the fields of engine, generator set, RV, yacht, fishing boat, ship, engineering machinery, agricultural machinery, refitting vehicle, etc. How to Use: 1. Make a hole of about

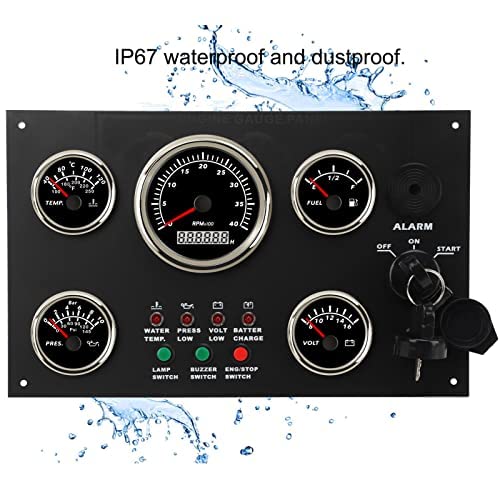

• Durable & Waterproof: Made of aluminum alloy panel, 316L stainless steel front cover bezel, antifog curved transparent lens, and industrial grade electronic components. IP67 waterproof and can withstand mechanical shock and vibration.

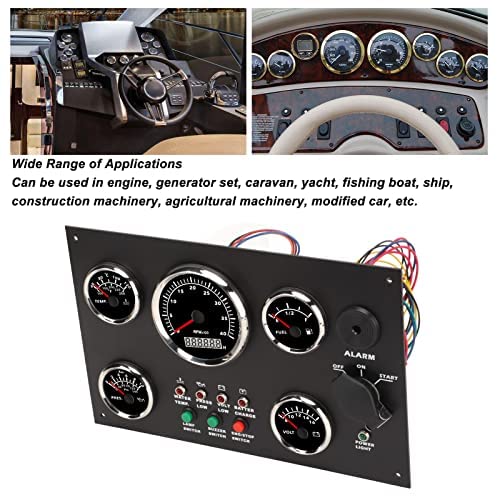

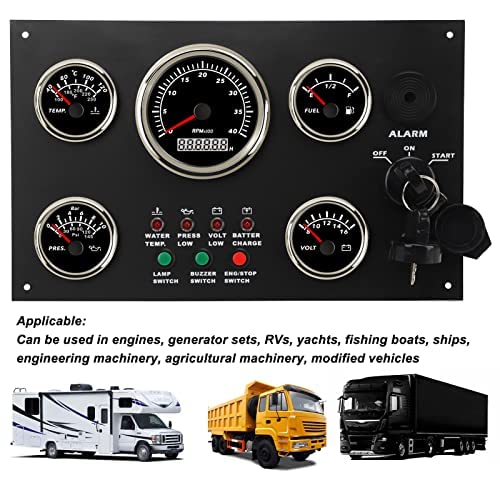

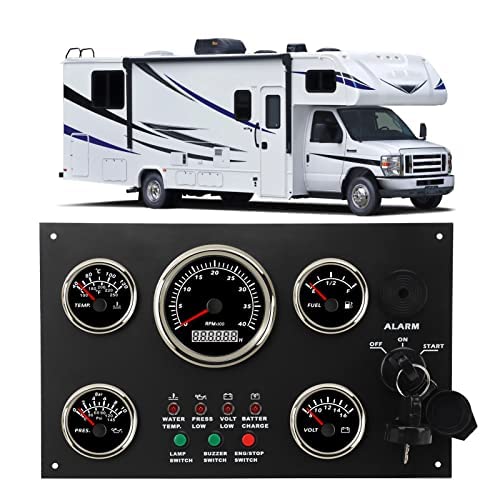

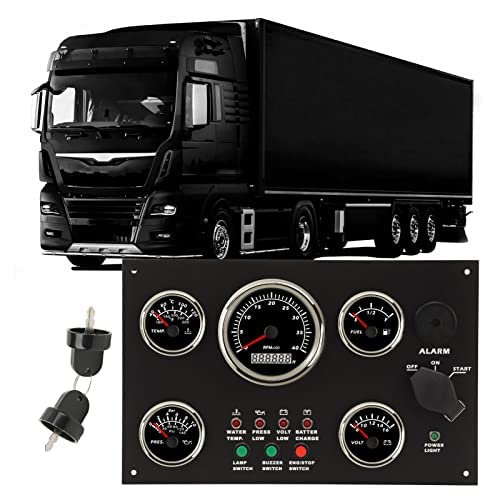

• Wide Application: Easy to install with only 300x190mm unit area. Suitable for engine, generator set, caravan, yacht, fishing boat, ship, engineering machinery, agricultural machinery, modified car, and more.
• 5 Gauge Set: Includes 85mm tachometer (0‑4000RPM, 99999.9H timing), 52mm water temp meter (100‑250℉), 52mm fuel level meter (F‑1/2‑E), 52mm oil pressure meter (0‑10Bar), and 52mm voltage meter (8‑16V).

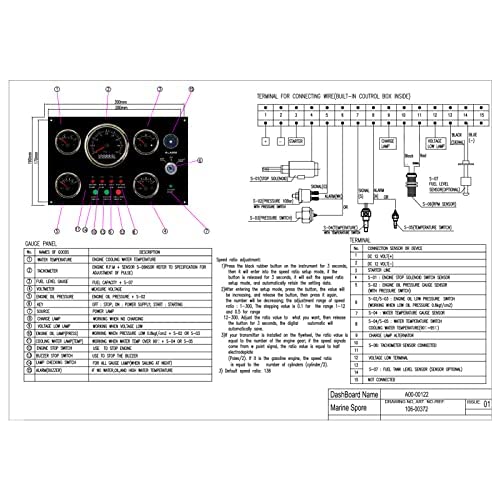

• Firm Installation: Back harness connectors equipped with snaps for a solid connection between the instrument and the harness, ensuring reliable performance even in strong vibration.
• High Accuracy: All gauges use pulse motor to drive the pointer for high accuracy and easy reading. Ultra wide working voltage design with long term working voltage of 9‑32V and ultra‑low power consumption.
